Description

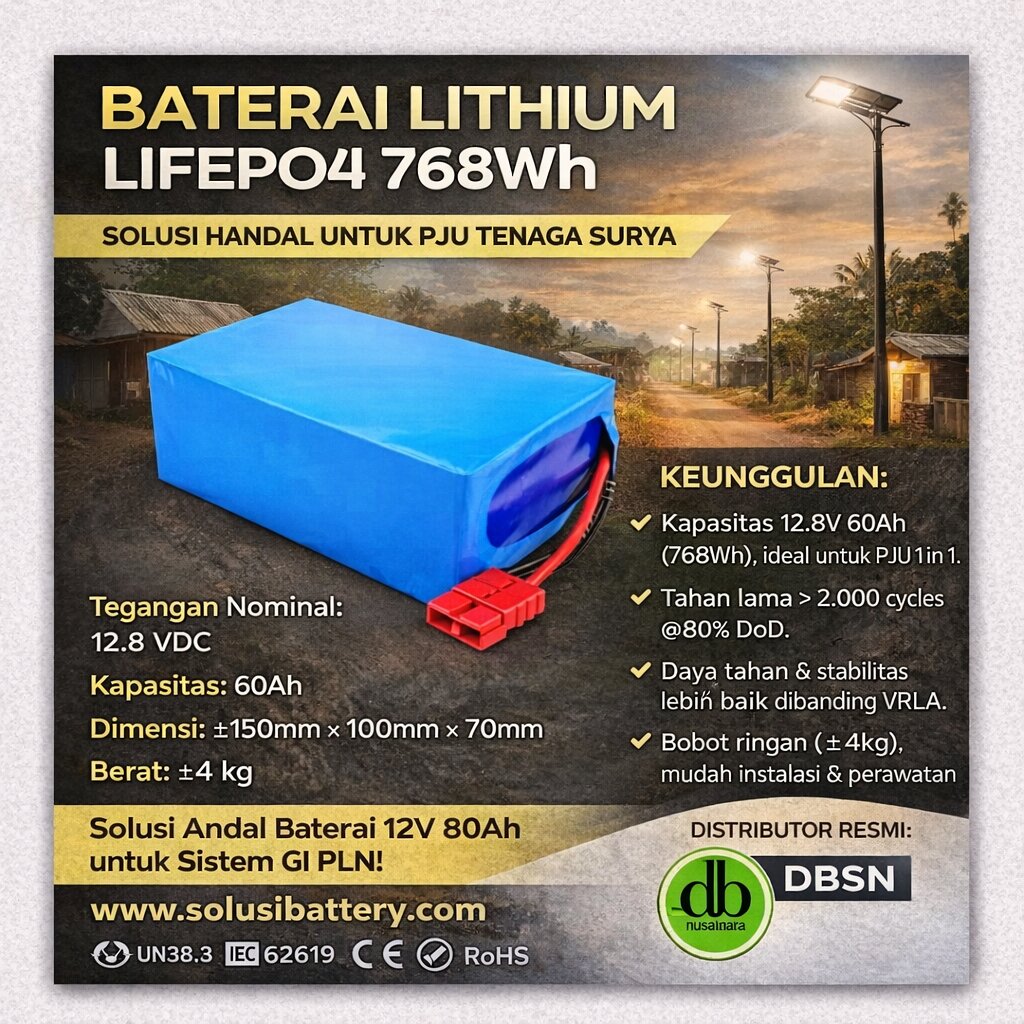

BATTERY LITHIUM LiFePO4 PACK 768WH
Battery Lithium LiFePO4 Pack 768wh bisanya di desain unuk pju tenaga surya 40watt dengan ketinggian 7 meter dan bisa menggunakan lampu LED Osram. Sistem ini sudah bisa di setting dengan dimmer dari controler sehingga membuat lebih awet battery dengan panel surya yang ada.
Longer Cycle Life :
- Up to 20 times and five times longer float/calendar life than lead acid battery, helping to minimize replacemenet cost and reduce total cost of ownership
Lighter Weight :
- About 40% of the weight of a comparable lead acid battery. A drop in replacement for lead acid battery
Higher Power :
- Delivers twice power of lead acid battery, even high discharge rate, while maintaining high energy capacityWider temperature Range : -20C ~ 60C
Superior Safety :
- Lithium Iron Phospate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation
Increase Flexibility :
- Modular design enables deployment of up to four batteries in series and up to ten batteries in paralel
SPESIFIKASI ELECTRICAL CHARACTERISTIC
- Nominal voltage : 25.6 V
- Nominal capacity : 31.5 Ah
- Internal resistance : 30m
- Cycle life : >1500 [email protected] 80% DoD
- Efficiency cf charge : 100% @0.5C
- Efficiency cf discharge : 96 99% @1C
STANDAR CHARGE :
- Charge voltage : 28.40,2 V
- Charge mode : 0,2 C to 28.4V,
- charge current to 0.002C(CC/CV)
- Max charger current : 15 A
- Charge Cut Of Voltage : 29.4V0,2 V
STANDAR DISCHARGE
- Continuous current : 35 A
– Max pulse current : 90 A (<3s)
– Discharge cut of voltage : 20 V
Baterai Manajemen sistem
- – Tegangan putus maks : 3,7 V
- – Tegangan maksimal pengisian : 3,35
- – Tegangan bawah maksimal : 2,5 V
- – Tegangan mulai isi di bawah : 2,7
- – Maksimum arus pengisian : 6 A
LINGKUNGAN
- – Suhu pengisian : 0C to 50 C @60%25% Relative Humidity
- – Suhu pengosonga : -20C to 60C @60%25% Relative Humidity
- – Suhu penyimpanan : 0 C to 40 C @60%25% Relative Humidity
- – Standart dus air : IP 56
Spesifikasi FISIK
- – Sell & Metode : 1665130 8S7P
- – Kasing : PVC
- – Dimensi : 348 x 261 x 60mm
- – Berat : 7.6 Kg
- – Garansi : 1 Tahun
DAYA BERKAH SENTOSA MENJADI PELOPOR ENERGI TERBARUKAN DENGAN PRODUK – PRODUK KAMI ANTARA LAIN :
- – BATTERY DAN RECTIFIER ( JUAL BATTERY INDUSTRIAL TERLENGKAP – KLIK DISINI )
- – UPS INDUSTRIAL ( UPS RIELLO – ITALI – KLIK DISINI )
- – PJU TENAGA SURYA ( DISTRIBUTOR PJU SOLAR CELL INDONESIA – KLIK DISINI )
- – PENANGKAL PETIR ( DISTRIBUTOR RESMI PENANGKAL PETIR EF – KLIK DISINI )
- – INVERTER ONGRID ( PLTS ONGRID / HYBRID – KLIK DISINI )
- – PRODUKSI TIANG PJU OKTAGONAL ( PRODUSEN TIANG PJU – KLIK DISINI )
- – TOKO AKI MOBIL – ( TOKO AKI TERLENGKAP DAN BERGARANSI – KLIK DISINI )
KAMI MEMPUNYAI WORKSHOP LENGKAP TENAGA AHLI SESUAI BIDANGNYA. SILAHKAN KUNJUNGI KANTOR KAMI UNTUK INFO SELANJUTNYA.
